Pipe Organ MapBerlin, Musikinstrumentenmuseum (Wurlitzer Organ)
| Builder | Wurlitzer |
|---|---|
| Year | ca. 1929 |
| Period/Style | Romantic |
| Stops | 157 |
| Keyboards | 4+P |
| Keyaction | electrical |
| Tuning | Equal |

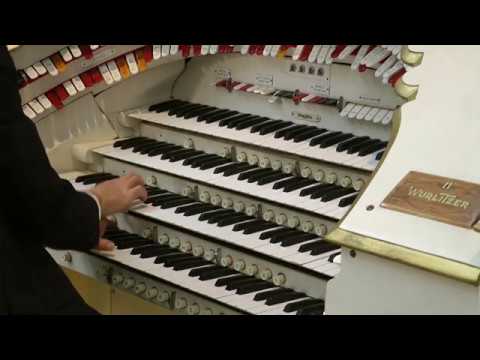

The organ was constructed in 1929 by the Rudolph Wurlitzer Company, bearing the opus number 2064. The instrument was custom-built for Werner Ferdinand von Siemens and was originally installed in the Siemens Concert Hall in Berlin. After being damaged in a fire in 1963, the organ was restored and became property of the State Institute for Music Research in 1982. After a further restoration by the Walcker Company in 1984, it was installed in the exhibition hall. The organ is a classic example of a cinema organ and contains 129 pipe registers drawn from 16 ranks of pipes, using the multiplex principle. Moreover, this particular instrument is the largest Wurlitzer organ in Europe!
| I Accompainment | II Great | III Orchestral | IV Solo | Pedal |
|---|---|---|---|---|
| Contra Viol 16' | Diaphone 16' | Diaphone 16' | Contra Gamba 16' | Diaphone 16' |
| Burdon 16' | Contra Gamba 16' | Contra Gamba 16' | Tibia clausa 16' | Contra Gamba 16' |
| Lieblich Burdon 16' | Contra Viol 16' | Tibia clausa 16' | Diaphonic Diapason 8' | Tibia clausa 16' |
| Diaphonic Diapason 8' | String 16' | Bourdon 16' | Gamba 8' | Burdon 16' |
| Tibia clausa 8' | Tibia clausa 16' | Diaphonic Diapason 8' | String 8' | Lieblich Burdon 16' |
| Flute 8' | Burdon 16' | Tibia clausa 8' | String celeste 8' | Octave 8' |
| Lieblich Gedackt 8' | Lieblich Bourdon 16' | Flute 8' | Quintadena 8' | Tibia clausa 8' |
| Quintadena 8' | Diaphonic Diapason 8' | Lieblich Gedackt 8' | Octave 4' | Flute 8' |
| Gamba 8' | Flute 8' | Quintadena 8' | Piccolo 4' | Lieblich Gedackt 8' |
| Viol d'orchestre 8' | Tibia clausa 8' | Gamba 8' | Gambette 4' | Gamba 8' |
| Viol celeste 8' | Lieblich Gedackt 8' | Viol d'orchestre 8' | Ophicleide 16' | String 8' |
| String 8' | Gamba 8' | Viol celeste 8' | Trumpet 8' | String celeste 8' |
| String celeste 8' | Viol d'orchestre 8' | String 8' | Tuba Horn 8' | Flute 4' |
| Octave 4' | Viol celeste 8' | String celeste 8' | Clarinet 8' | Ophicleide 16' |
| Flute 4' | String 8' | Octave 4' | Oboe Horn 8' | Tuba Horn 8' |
| Tibia 4' | String celeste 8' | Piccolo 4' | Orchestral Oboe 8' | Clarinet 8' |
| Piccolo 4' | Octave 4' | Flute 4' | Clairon 4' | Nebenregister |
| Viol d'orchestre 4' | Flute 4' | Lieblich Flute 4' | Tympani | |
| Viol Celeste 4' | Lieblich Flute 4' | Gambette 4' | Tympani (Roll) | |
| Twelfth 22/3' | Piccolo 4' | Viol d'orchestre 4' | Bass Drum | |
| Piccolo 1st 2' | Viol celeste 4' | Viol celeste 4' | Snare Drum | |
| Piccolo 2nd 2' | Viol d'orchestre 4' | Tibia 2' | Kettle Drum | |
| Vox humana 16' | Twelfth 1st 22/3' | Piccolo 1st 2' | Crash Cymbal | |
| Tuba Horn 8' | Twelfth 2nd 22/3' | Piccolo 2nd 2' | Gong | |
| Oboe Horn 8' | Piccolo 1st 2' | Ophicleide 16' | ||
| Orchestral Oboe 8' | Piccolo 2nd 2' | Trumpet 8' | ||
| Clarinet 8' | Tierce 13/5' | Tuba Horn 8' | ||
| Vox humana 8' | Ophicleide 16' | Clarinet 8' | ||
| Vox humana 4' | Clarinet 16' | Oboe Horn 8' | ||
| Marimba | Vox humana 16' | Orchestral Oboe 8' | ||
| Harp | Trumpet 8' | Clairon 4' | ||
| Chrysoglott | Tuba Horn 8' | Xylophone | ||
| Snare Drum | Orchestral Oboe 8' | Cathedral Chimes | ||
| Tambourine | Clarinet 8' | Glockenspiel | ||
| Castanets | Vox humana 8' | Bells | ||
| Chinese Block | Clairon 4' | |||
| Sand Block | Marimba 8' | |||
| Tom Tom | Xylophone | |||
| Chrysoglott | ||||
| Cathedral Chimes | ||||
| Glockenspiel | ||||
| Harp | ||||
| Sleigh Bells |
